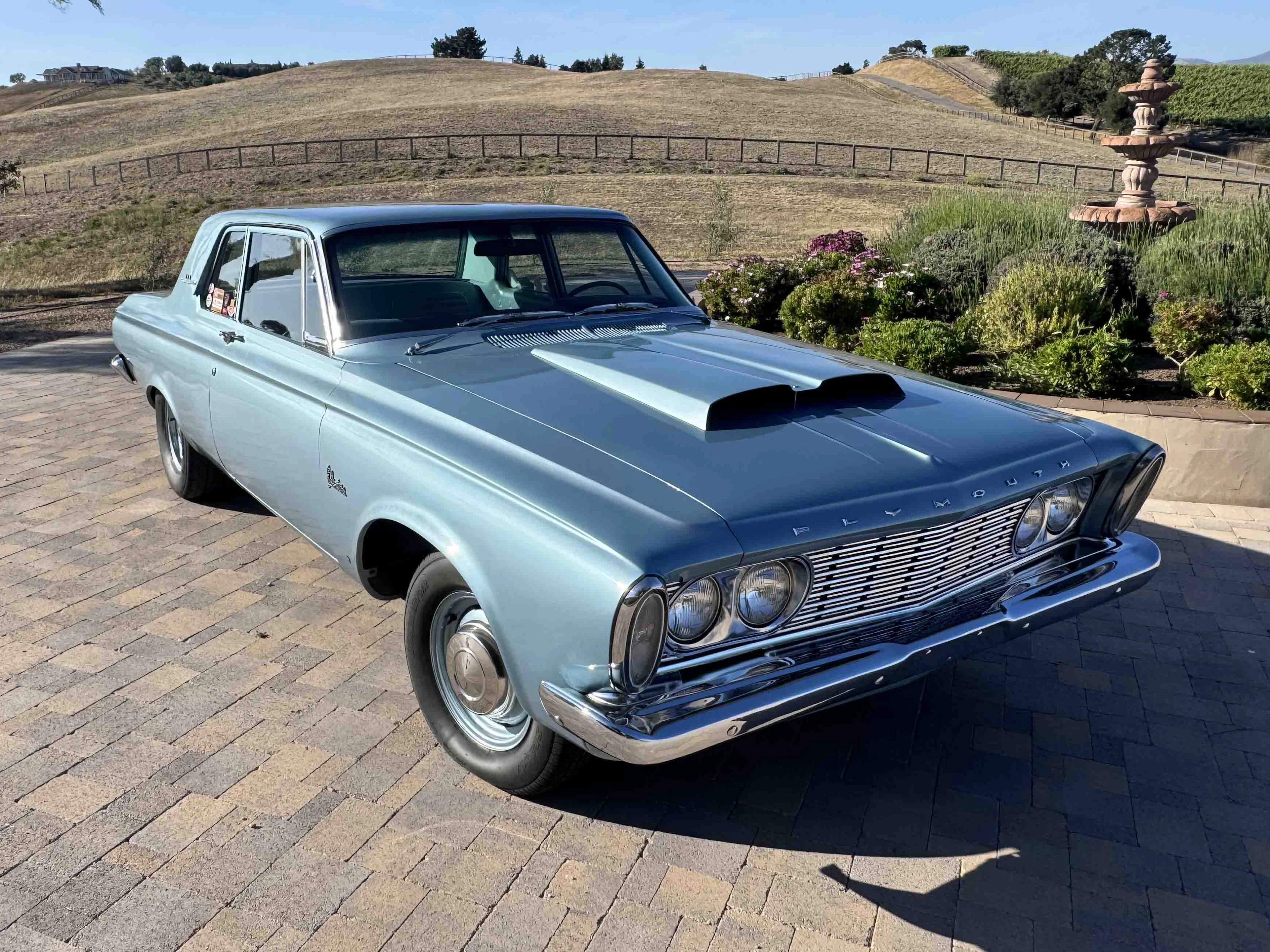

426 Max Wedge-Powered 1963 Plymouth Belvedere

Description

In the early 1960s, drag racing’s spotlight fell on Top Stock Eliminator, where large Super Stock fields battled and by 1963 Dodges and Plymouths often led. Their advantage centered on the 426 Max Wedge, offered in 415-horsepower street/strip and 425-horsepower race versions with high compression, dual Carter carburetors, and a cross-ram intake. Installed in lighter unit-body cars, these engines delivered superior power-to-weight performance.

Chrysler racers favored the durable A727 TorqueFlite automatic with push button gear selector for better traction and faster shifts. Importantly, these proven combinations were available to customers making 1963 Plymouths formidable competitors.

This Belvedere was built at automaker's Los Angeles plant in January 1963. It has been modified with an RB 440ci V-8 Wedge engine with a date code of May 7, 1966. In the style of a Super Stock racer, the engine features an aluminum Max Wedge Cross Ram intake with twin Carter 750-cfm carburetors, and the car is equipped with a 727 TorqueFlite automatic transmission with push button gear selector. In a further detail nod, the hood features the signature Max Wedge scoop.

This 426 Max Wedge-Powered 1963 Plymouth Belvedere is now offered by the executor of the late owner's estate with an owner's manual and a clean California title.

Highlights

• Reimagined in the spirit of the Max Wedge Super Stock racers

• Resprayed in Medium Metallic Blue paint

• Original bench seat Blue vinyl and cloth interior with Gold piping

• 1966-code Mopar RB 440ci V-8 Wedge

• 727 TorqueFlite automatic transmission

• Push button gear selector

Factory Equipment

• Push button gear selector

• 8-3/4 inch rear end

• Bench seat interior

• Steel wheels with dog-dish hubcaps

• The Body Plate decodes as:

  • SO: Shipping Order # 01/21 – Planned Delivery Date

  • NUMBER: Production Sequence – 7096

  • BDY: Body Style 321 – Belvedere 2-door sedan

  • TRM: Trim Color 321 – Blue cloth and vinyl

  • PNT: Lower and Upper Body Color DD1 – Medium Metallic Blue

• The chassis number (3235131850) decodes as:

  • 3 – Plymouth V8

  • 2 – Belvedere

  • 3 – 1963 Model Year

  • 5 – Los Angeles, California, assembly plant

  • 131850 – Production number

Modifications

• Exterior

  • Super Stock hood

• Interior

  • Aftermarket tachometer

• Engine

  • Mopar RB 440ci V-8 Wedge

  • Engine block casting 2536430 with date code of May 7, 1966

  • 426 cylinder heads

  • 426 polished aluminum Max Wedge Cross Ram intakes

  • Headers

  • Balanced steel crank

  • Clevite P-Series main bearings MS877P10

  • Clevite Mahle connecting rod bearings CB527P10

  • TRW .030 bored over pistons 7025P with floating pins for 10.5:1 ratio

  • JE pistons Premium Race Series piston rings J100F8-4350-5

  • ISKY Racing Cam with RR-660 roller 165166

  • Valve lift .660 valve lash hot .028 duration 324 degreens at .50 Lobe center 108 degrees

  • Dual 4-barrel Carter 750 CFM carburetors

  • Dual Flowmaster exhaust

  • Fuel pressure gauge braided stainless steel fuel line

  • 727 Torqueflite automatic transmission

• Brakes/Suspension

  • 15-inch painted wheels with dog-dish wheels

  • Nitto Extreme Drag Radials on the rear

Known Imperfections

• Wear on interior sun visors.

Ownership History

This 1963 Plymouth Belvedere was acquired in its present condition in 2022 from a speed shop located in Northern California. The car is now offered on behalf of the estate of its late owner.

Included Items

• Owner’s manual

Additional Information

The seller states, “This car is immaculate. Originally built in Los Angeles in 1963. Mopar RB 440 Ci V-8 Wedge engine block casting 2536430 width date code of 5/7/1966. Medium metallic blue paint to match the original interior bench seat blue vinyl and cloth.”
