Rob Siegel

My arrest-me-Signal-Red 1973 BMW E9 3.0CSi coupe is the unmistakable jewel in the crown of my not-a-collection. I never keep it in my rented more-humid-than-I’d-like storage—it’s always safe and sound in the garage at my house. In addition, I regard it as the best-sorted of any of my vintage cars. So when I needed to take it to BMW CCA Oktoberfest in Warwick, Rhode Island, a scant 70 miles south of my Boston-area home, I didn’t think twice about just checking the oil and the tires, reconnecting the battery, twisting the key, and driving it.

And when I did, the car lurched backwards. I’m lucky it didn’t crash into the back wall of the garage and incur tens of thousands of dollars of sheet metal damage.

Clutch or hyrdaulics problems BMWs

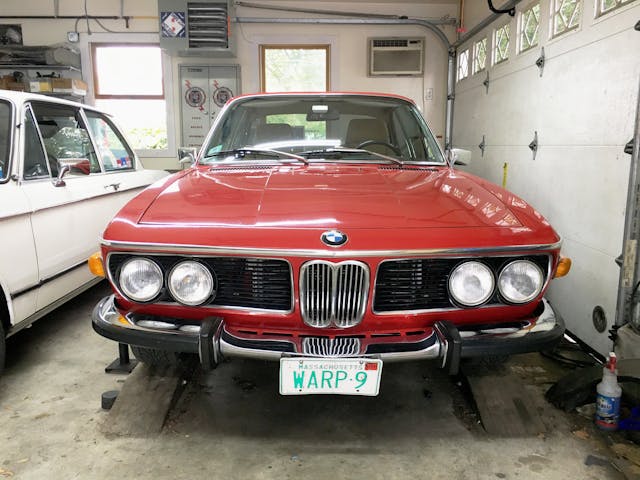

My precious E9 coupe where it tried to launch itself through the back wall. Rob Siegel

I was so jarred by the event that it took me a moment to put the mechanics of it together. The shift lever was in reverse—I’d obviously left it there when I’d backed the car in—but I was certain that I’d stepped on the clutch. Or not? Regardless, the first thing I needed to do was shift it into neutral and try it again.

I couldn’t. The shift lever wouldn’t budge.

Hmmmmn.

Clutch or hyrdaulics problems shifter
This fella was not cooperating. Rob Siegel

The lever was so stuck in reverse that I began to think it might be a linkage issue, but I realized that, when coupled with the fact that the car lurched backward when I was sure I had my foot on the clutch, it was more likely that the clutch was the culprit. By applying an amount of brute force on the shift lever sufficient for me to worry about bending it or the linkage, I eventually popped it out of reverse and into neutral (in retrospect, I should’ve jacked up the back of the car to relieve the twist on the transmission likely being transmitted through the drivetrain). But when I tried rowing it engine-off-clutch-down through the gears, it took far more effort than usual.

I triple-checked that the gearbox was in neutral and I had the clutch pedal depressed (and the brake pedal too as insurance) and again started the car. As expected, it started without trying to take off anywhere, but with the engine running and the clutch depressed, I could not get it into any gear.

Clearly the clutch wasn’t working. But that can mean two very different things. It can mean that there’s a hydraulic or a mechanical failure. Or it can mean that the clutch disc is frozen between the flywheel and the clutch plate. And it’s surprisingly challenging to tell which it is.

Let’s back up (smoothly; no lurching) and enroll in Hack Mechanic Clutch 101 for a moment. The clutches in most manual-transmission cars work in pretty much the same way. The clutch itself has two pieces—the clutch plate and the clutch disc. The disc has a two-sided sacrificial surface made from material that’s not unlike a brake pad or shoe. In the center it has a splined hole through which the transmission input shaft passes. The disc is held against the flywheel by the clutch plate, which like the flywheel has a machined metal surface. The clutch plate assembly is bolted to the flywheel, but when the sprung “fingers” on the back of the clutch are pressed inward, the machined plate surface retracts backward, freeing the disc (I know, it’s counterintuitive).

Clutch or hyrdaulics problems clutch internals
A new clutch disc going on the freshly-machined flywheel on the engine of my Lotus Europa. It’s held in place in the center by an alignment tool. Rob Siegel
Clutch or hyrdaulics problems clutch internals

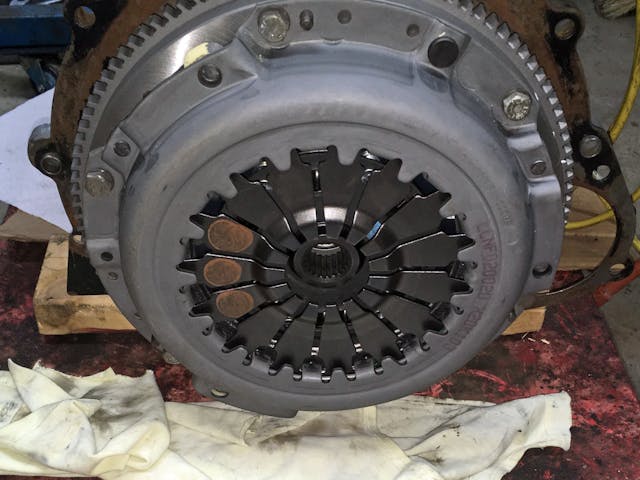

The clutch plate bolted onto the flywheel and capturing the disc. The plate’s “fingers” and the disc’s splined center hole are visible. Rob Siegel

Separate from but intimately related to the clutch itself is the clutch release mechanism, which consists of the release lever, the sleeve, and the throwout bearing. The throwout bearing is what actually presses against the clutch plate’s fingers. It slides up and down on a cylindrical sleeve inside the transmission bell housing. It’s called a release “bearing” because since the clutch plate is bolted to the flywheel, it and its fingers are always spinning, so in order for something to depress those rotating fingers, it needs to touch them and then spin with them. The throwout bearing is moved fore and aft by the release lever, which may use a see-saw design or a simple forward-throw configuration.

Clutch or hyrdaulics problems spindle

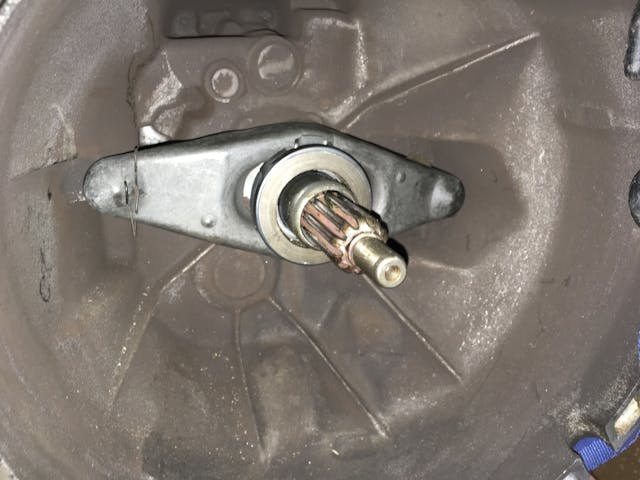

The inside of the bellhousing of my BMW Z3’s transmission showing the input shaft, forward-throw release lever, sleeve, and throwout bearing. Rob Siegel

Lastly is the linkage connecting the clutch pedal to the release lever. Although some old cars have purely mechanical clutch linkages, and others—like vintage Volkswagens, Porsches, and my Lotus Europa—have a cable-actuated clutch, most cars have a hydraulic clutch linkage, where a clutch master cylinder behind the pedal is connected to a clutch slave cylinder on or in the bell housing.

Clutch or hyrdaulics problem circle

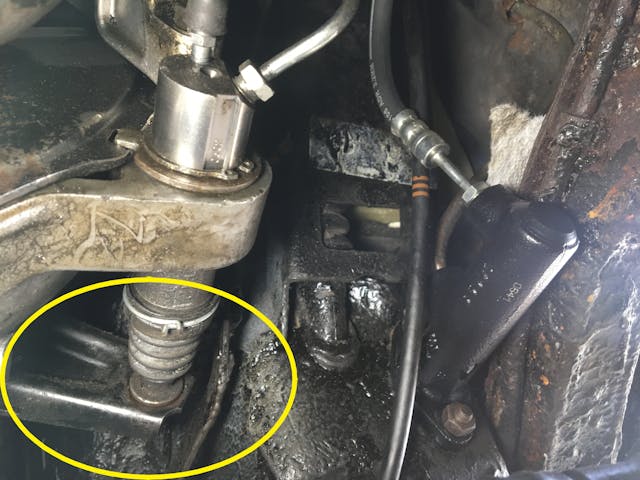

The clutch master cylinder (right) and slave cylinder (left) on my BMW 2002. In this configuration, the see-saw release lever (circled) protrudes through the side of the bell housing. Rob Siegel

Now that we’ve identified the actors, we can start the play. When your foot is off the clutch pedal, the sprung pressure in the clutch plate causes the clutch disc to be sandwiched between the plate and the flywheel, making them essentially a single unit. So as the flywheel turns, the disc turns. The splined fit between the disc and the transmission input shaft causes the shaft to rotate, which in turn sends power to the wheels via whatever gear the transmission is in, or idles in neutral.

Clutch or hyrdaulics problems plate closeup

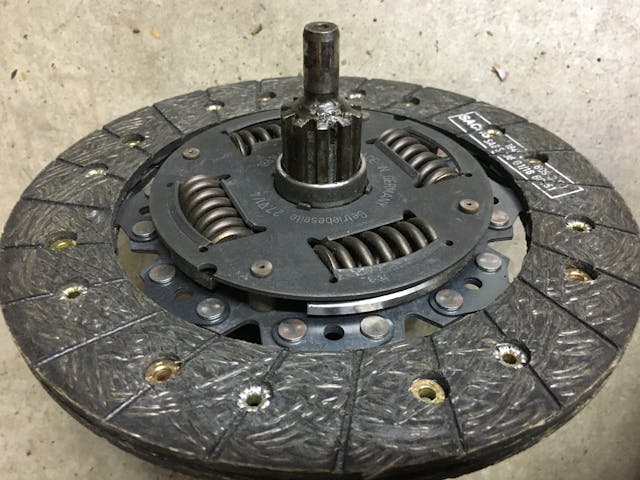

A clutch disc on a splined transmission input shaft. Yeah, I know—the rest of the transmission is missing. This is an old shaft I use as an alignment tool. You can never take a photo of the real thing anyway, as both the transmission bell housing and the clutch plate assembly are in the way. Rob Siegel

When you depress the clutch pedal, that moves a piston in the clutch master cylinder. Fluid under pressure is sent to the clutch slave cylinder, which causes a piston inside it to move, which moves a rod sticking out the end. This pushes the release lever, which in turn slides the throwout bearing along the sleeve. The throwout bearing contacts the fingers on the back of the spinning clutch plate. It presses against them, retracting the machined surface of the plate. This frees the clutch disc. With the disc no longer sandwiched against the flywheel, the spinning engine is no longer coupled to the transmission, allowing the gears to be shifted.

Got it? This concludes Clutch 101. But there will be homework.

A number of things can go wrong with all this. As I’ve written, failed clutch hydraulics are one of the “Big Seven” things that frequently strand a vintage car. A bad clutch slave or clutch master cylinder usually manifests itself as a pedal that goes all the way to the floor, usually accompanied by visible fluid leakage. However, sometimes there’s no leakage and the pedal stills feels fine, but there’s a problem building hydraulic pressure. Other non-hydraulic issues are that the throwout bearing can go bad, sounding like a little lathe inside the bell housing. Or the release mechanism itself can fail, either jamming the pedal or making it floppy, as were the respective cases on two separate occasions with my 1970 Triumph GT6+ 45 years ago—once when the sleeve broke and again when the pivot broke through the release lever (ah, the joy of cars built from recycled WWII metal). And, of course, eventually the clutch disc wears down, resulting in the clutch slipping when power is applied. The clutch can also chatter if it’s contaminated with oil from a leaking rear main engine seal.

But the other thing that can happen on a car that’s been sitting is that the clutch can stick. Just like brake pads and shoes will stick to the rotors and drums if a car isn’t driven, the clutch disc can stick to the flywheel and/or the clutch plate. The standard methods of freeing it are letting the engine run for a while to warm things up, then cranking the starter with the transmission in gear and your foot on the clutch and brake pedals. Or jacking up the back of the car, starting it in gear, revving it up, then having someone drop the jack. Or spraying brake cleaner into the timing inspection hole (at least on BMWs) to try to break the bond of corrosion. I read one very clever solution in an Alfa forum from a guy who had a spare transmission and clutch assembly and figured out exactly where to drill a quarter-inch hole to reach in with a thin screwdriver and tap the surfaces apart, but most of us can’t do that.

I had the “frozen clutch or bad hydraulics” thing happen when my 1972 BMW 2002tii “Louie” was part of an exhibit in the BMW CCA Foundation museum. As the exhibit was ending and I was planning to fly down to pick up the car, the museum staff told me that the car would no longer go into gear when running. As part of sorting out the car just a year prior, I’d replaced both the clutch master and slave cylinders, so my brain automatically checked the “well, it can’t be that” box and I thus assumed the problem must be a frozen clutch, but nonetheless I went down with spare hydraulics just in case. When I got there, the clutch pedal felt fine to me and I saw no evidence of fluid leaking, further reinforcing the diagnosis that the clutch must be stuck. I did everything you’re supposed to do to free it, but it remained stuck. Finally I jacked up the car, put it on stands, crawled under it, had someone depress the clutch pedal, and watched the action of the slave cylinder and the clutch release lever—which is possible because, as per the photo above, on a stock BMW 2002 four-speed gearbox, the release lever protrudes through the side of the bellhousing.

To my surprise, I found that, although the pedal felt just fine, the release lever moved a little, then retreated back, indicating a hydraulic pressure-loss issue. The video of this can be seen here. Was the clutch slave cylinder bad, or was it the master? I didn’t know, so I replaced the year-old slave cylinder first because that was easier. Unfortunately, that didn’t fix it, but replacing the year-old master cylinder did. The correct release lever action can be seen here.

Clutch or hyrdaulics problems green bmw

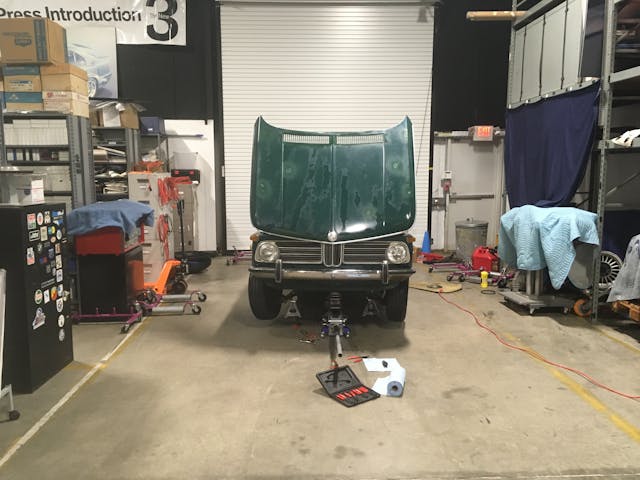

Me finding a corner of the museum in which to fix Louie, allowing me to drive the car home from its nine-month stay as part of a 50th anniversary of the 2002 exhibit. Rob Siegel

Unfortunately, the transmission in my 3.0CSi is different from that on the 2002—the release lever is wholly contained inside the bellhousing, so you can’t watch it in action. The real lesson from Louie was that if you can’t actually see what the hydraulics are doing, there’s not really a way to tell bad hydraulics from a frozen clutch. You need to try and rule one out as best as you can, and then go down the road of the other and hope that you’re not wrong.

Clutch or hyrdaulics problems peg

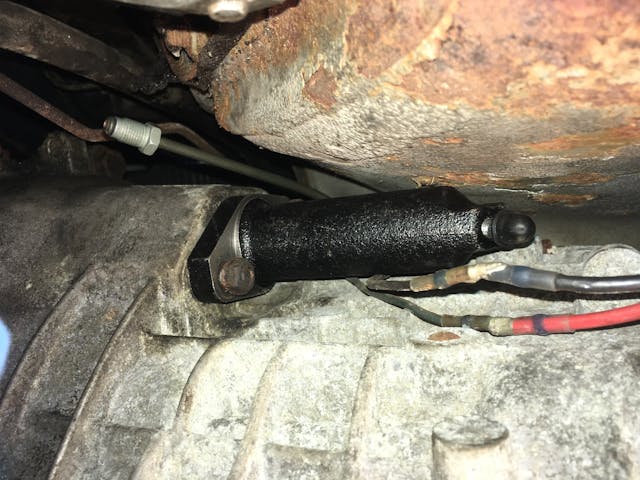

This isn’t the 3.0’s transmission—it’s a five-speed I have installed in one of my other 2002s—but the configuration is the same. The slave cylinder’s rod goes through the side of the transmission, and you can’t watch it or the release lever move. Rob Siegel

I’ve only had stuck clutches twice before. One was on my Z3 after it sat outside all winter. It freed up fairly easily after I started the car in gear with my feet on the brake and clutch pedals. The other was a long-dead 2002 I’d hauled home. For that one, I had to use the blast-brake-cleaner-down-the-timing-inspection-hole trick to let it seep between the clutch plate, disc, and flywheel and soften the bond of corrosion that had formed. And then start it in gear.

Now, my pampered 3.0CSi certainly hadn’t been sitting out in the elements all winter—it was in my garage and had last been driven just three or four months ago. But it had been a rainy summer, and my garage certainly isn’t a humidity-controlled environment. So I tried cranking the starter with my foot on the clutch and the brake pedal pinned but had no success. I was about to try spraying brake cleaner down the timing inspection hole, but to my amazement, I couldn’t find any in the garage (inconceivable!).

So I had a look at the hydraulics. I jacked up the car, set it on stands, crawled beneath it, and inspected things closely. I saw no sign of fluid leakage. Although there was no way to directly visualize the motion of the release lever, I unbolted the clutch slave from the side of the gearbox, roped one of my kids into service, and had him gently depress the clutch pedal while I pressed the slave cylinder’s rod against the side of the gearbox to simulate the push-back from the clutch’s sprung fingers. I couldn’t find a spec for exactly how far the rod should extend, but it moved about an inch and stayed out as long as the clutch was depressed. Hack Mechanic verdict: There was nothing obviously wrong with the clutch hydraulics.

Clutch or hyrdaulics problems BMW red
What secret a you hiding, dearest one? Do you just want a little attention? Rob Siegel

In the morning, I reattached the slave and set the car back down on the ground. I was about to run out for brake cleaner but thought I’d give another try at cranking the starter. This time I did it with the car in third gear, foot on the clutch, and the brake pedal mashed so hard I thought I might break the back of the Recaro. Mercifully, the clutch broke free. So it was a stuck clutch.

But even though the problem was solved, I couldn’t let go of the idea that there must be some way of telling a frozen clutch from bad hydraulics. I asked the question of two friends of mine, both professional wrenches on vintage European cars. Both offered the same “if it quacks like a duck” diagnostic approaches I’d already followed.

So I thought about it quite a bit. I wondered if there’s a difference between the disc being frozen to the flywheel versus to the clutch plate versus to both. I don’t think there is. The clutch plate is bolted to the flywheel, so the two always rotate together. The disc is always coupled directly to the transmission input shaft via the splines. So whether it’s stuck to one machined surface or the other or both, I think the effect is the same.

Then I wondered if you should be able to feel a stuck clutch as lack of motion in the pedal. Intuitively you’d think you could, as we’re trained to make sure that, during installation, the clutch disc slides smoothly on the transmission input shaft’s splines. Hell, you even put a dab of special lube on the splines to make sure it does. So if the clutch is seized, shouldn’t you feel the disc not sliding?

Surprisingly, no. Once you’ve bench-pressed the transmission upward, positioned the input shaft in the hole in the clutch disc, aligned the two with the precision of lenses on an optical bench, rotated the flange on the back of the transmission to get the splines to mesh, uttered a foul streak of blue language that no matter what you do it’s not going in, prayed to whatever god you believe in, then finally slid the transmission forward and heard that reassuring THOCK that indicates it’s in place, the disc really doesn’t move much on the shaft other than floating slightly away from the flywheel when the clutch is depressed in the same way that brake pads move slightly off a rotor. It should also move slightly closer to the flywheel as the disc wears down. But more to the point, what you feel when you depress the clutch pedal isn’t the disc sliding on the splines—it’s the throwout bearing pushing the clutch fingers and moving the plate backward.

On a closely related note, I’ve heard of a malady where the clutch disc sticks not to the flywheel but to the splines on the transmission shaft. This causes the disc to drag against the flywheel, creating hard shifting until things warm up.

So, no, I don’t think there’s an easy definitive frozen-clutch-versus-hydraulics test. If it happens to you, I’d say do what I did and try to rule out the hydraulics. See if the clutch pedal feels normal. Check if the clutch reservoir has lost any fluid and if the hydraulics are leaking. If the release lever is visible, watch it while someone depresses the clutch pedal. If it’s not, pull out the slave and put the rod under pressure while someone pushes fluid into it. If it passes all those tests, it’s probably a seized clutch. So try to free it. If you can’t despite doing everything, you’re faced with either pulling the transmission to get direct evidence that it’s seized, or replacing the hydraulics even though there’s nothing obviously wrong. Which one do you want to try first? I thought so.

But if anyone knows of a secret test, I’d love to hear it.

And yes, from now on, I won’t simply mash the clutch pedal when I start a car—I’ll shift it to neutral and then mash the clutch pedal.



***
