Welcome to a new test series we’re calling The Death Eaters. With the help of the Lane Motor Museum and Kentucky’s wonderful NCM Motorsports Park, Hagerty is exploring the stories and real-world behavior of legendary cars with infamous handling. The stuff of lore, common and obscure, from turbo Porsches to Reliant three-wheelers. Enjoy! — jb

Let’s make one thing clear: We did not set out to roll the Tatra.

The purpose of this test was simple. In cooperation with both the Lane Motor Museum in Tennessee and Kentucky’s NCM Motorsports Park, we set out to chase the truth behind a few automotive stereotypes. The goal was to either give validity to stories of fantastical gore or pull the teeth from them. What began with a bit of research ended with a purpose-built skidpad course and a decreasing-radius corner at one of the country’s finest tracks.

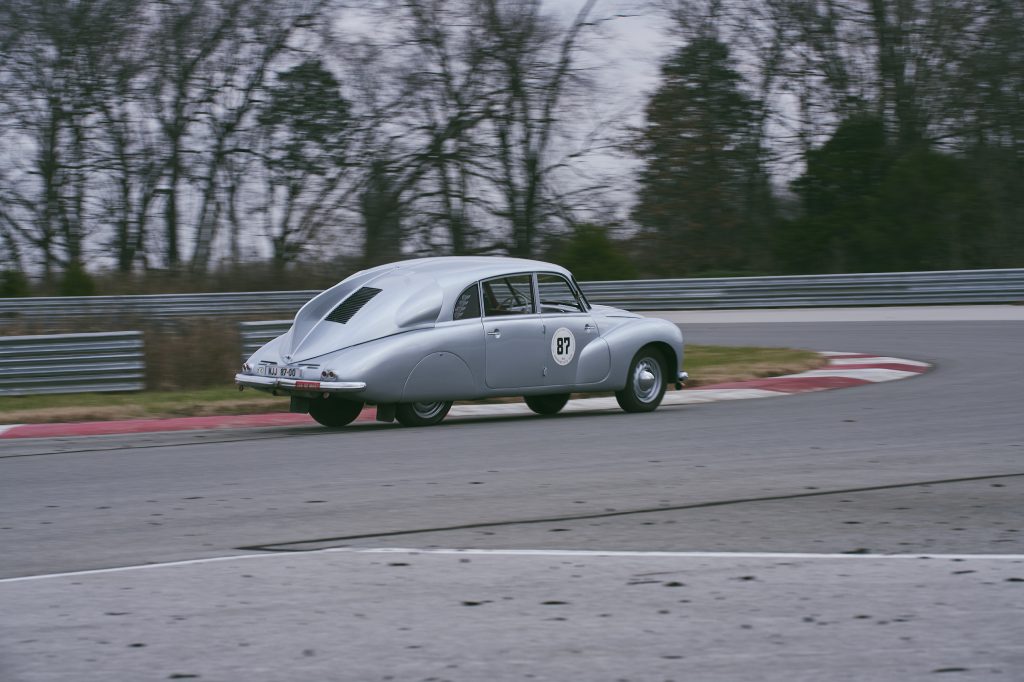

1947 Tatra T87 rear three-quarter track action
Andrew Trahan

In the middle, there was road time. Around 70 miles getting to know the car on surface streets and interstate. The machine that revealed itself liked to slide with only a dust of warning—not particularly benign behavior, in the modern sense, but not deliberately murderous, either. Picture a stretched VW Beetle with an air-cooled V-8 up the breech. At the track, after some time on the skidpad, we paused for a safety check. The Tatra’s rear tires were so stressed by the environment and the particulars of the car’s design that they nearly peeled off the rim. Personnel from the Lane museum suggested that we bump rear pressure for safety, and we agreed.

On the run after that, as I turned into a tight, first-gear corner, the car levitated.

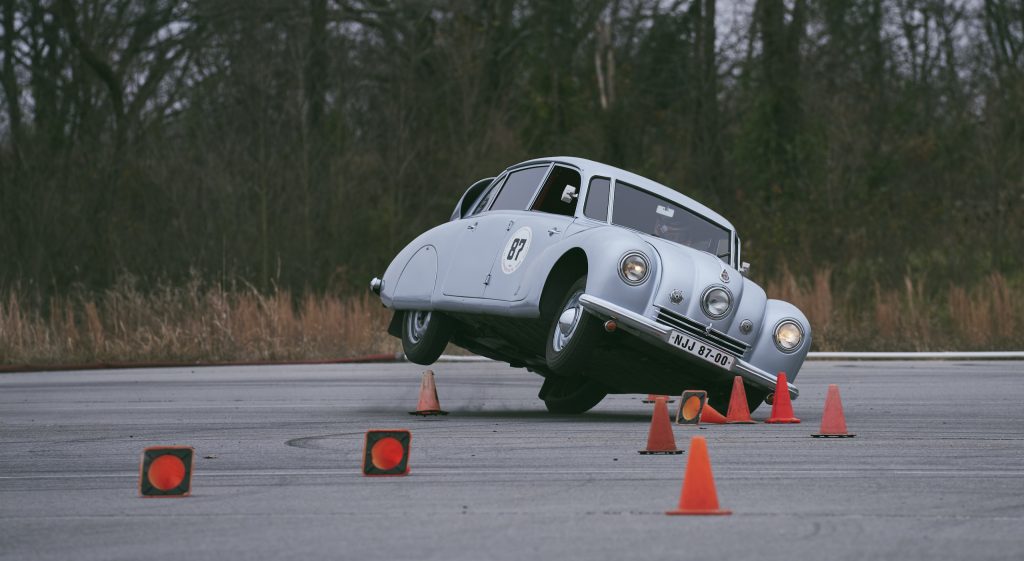

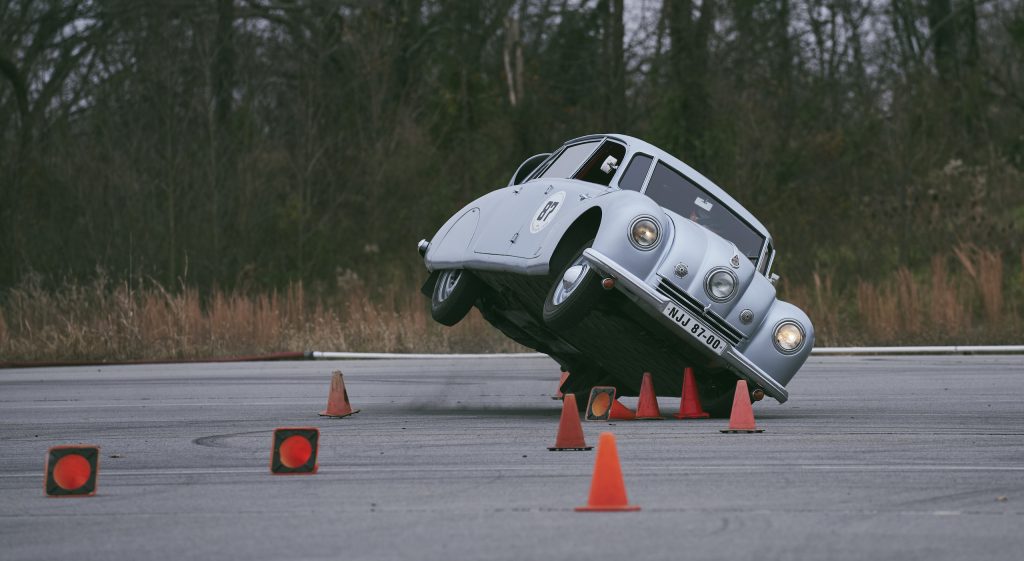

1947 Tatra T87 rollover crash action front
Andrew Trahan

Time ground to a halt. The driver’s window filled with asphalt. The car fell on its side with a crash and began grinding across the pad. Little chips of Bondo sprinkled into my helmet as I came to grips with the fact that I had just rolled—was not even done rolling—a four-door, six-figure, apocryphally Nazi-killing Czech limousine.

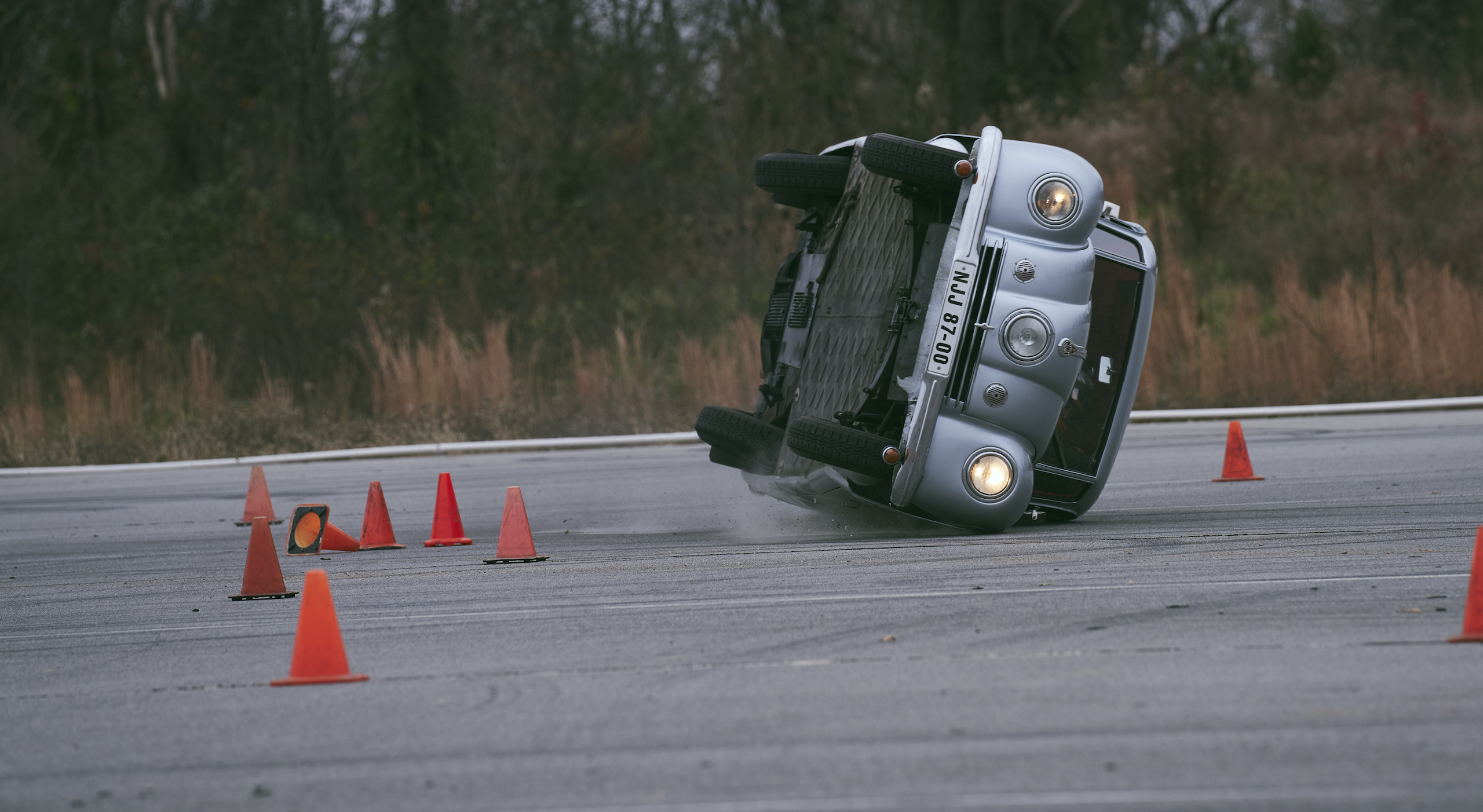

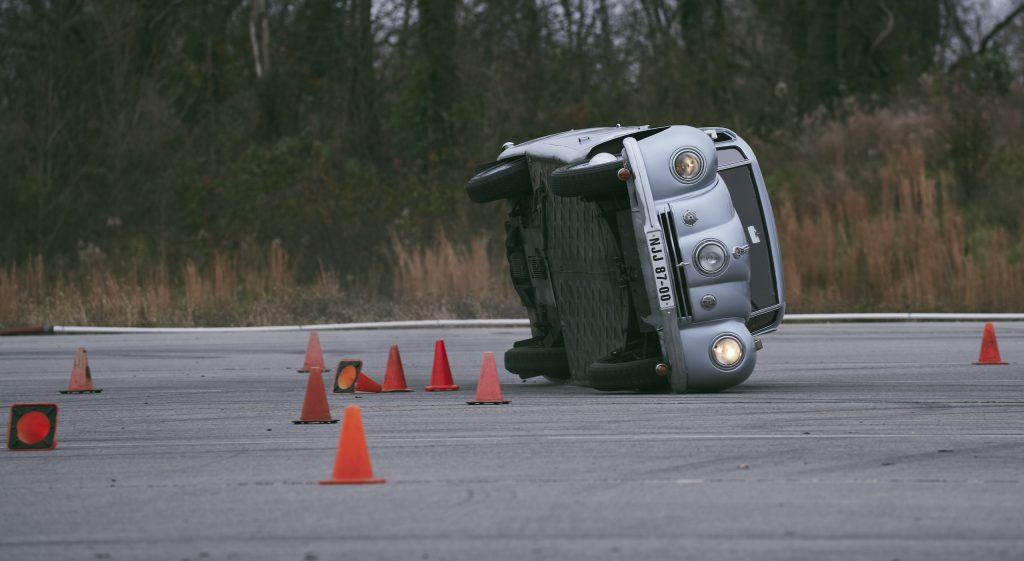

1947 Tatra T87 rollover crash action front
Andrew Trahan

A small stream of gasoline drizzled out from beneath the car’s cowl and began dripping onto the pavement below. In the distance, on the other side of the pad, a handful of figures started running toward the car. Blurry motion, legs moving fast enough to avoid focus.

We had learned something, I thought. A lot of something. But first, I had a very strong urge to throw up.



QUESTIONS

At this point, the average reader should have two questions:

1. Why on earth was it so important for us to discover just how, exactly, a 73-year-old car was dangerous?

and

2. What in blazes is a Tatra?

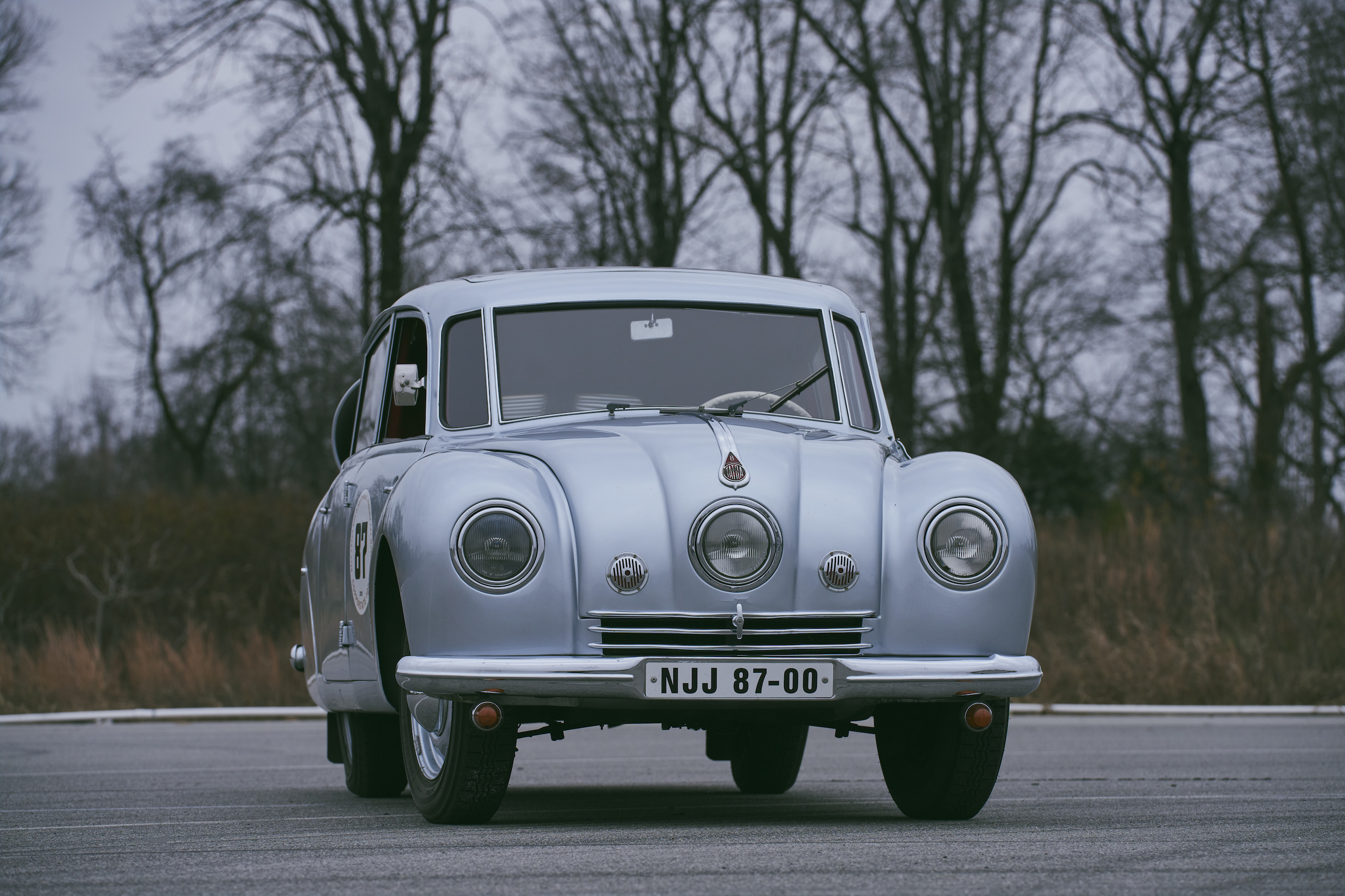

1947 Tatra T87 front
Andrew Trahan

Answers in reverse order. The 1936–1950 Tatra T87 was the brainchild of an Austrian engineer named Hans Ledwinka. Extremely influential man, longtime chief engineer for Czechoslovakian marque Tatra, solid chance you’ve never heard of him. The T87 was Ledwinka’s magnum opus, a flawed but nonetheless lovely piece of genius that built and improved on his previous work for the company. At a time when most passenger cars offered the aerodynamic profile of a large cow, blunt and upright, the Tatra’s 0.36 drag coefficient helped it squeeze a top speed of more than 90 mph from just 75 hp. An air-cooled, overhead-cam, magnesium-block, hemi-chambered V-8 lived behind the rear axle and drove the rear wheels through a four-speed transaxle, aiding traction and packaging. The car offered rack-and-pinion steering and independent rear suspension decades before either was common. Four adults could ride comfortably, six in a pinch. At 80 mph, the Tatra’s interior was virtually hushed. In the 1930s, when most of the world was still trundling around in primitive automobiles only a few steps removed from tractors, this list was virtually science fiction.

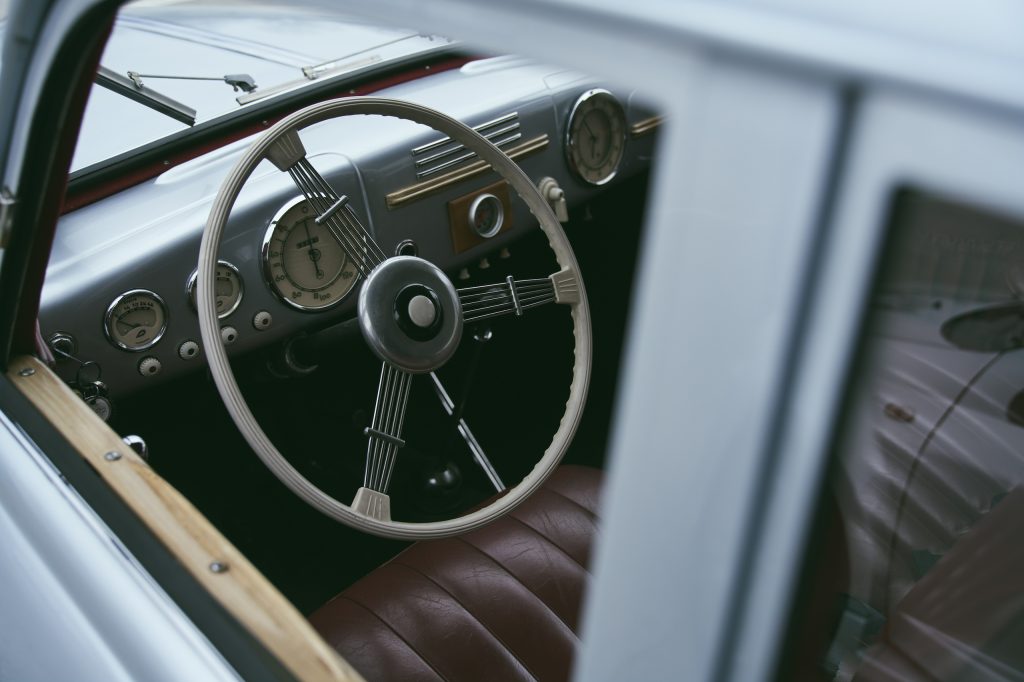

1947 Tatra T87 interior through window
Andrew Trahan

Naturally, there were drawbacks. The T87 drove and suspended its rear wheels through swing axles, and swing axles of the 1930s were prone to strange behavior in corners. The relatively narrow track was married to a relatively high center of gravity. Finally, the Tatra’s front axle carried just 37 percent of the car’s weight; the driver was miles away from the mass that helped compass the car’s moves, guiding a heavy pendulum at something like arm’s length.

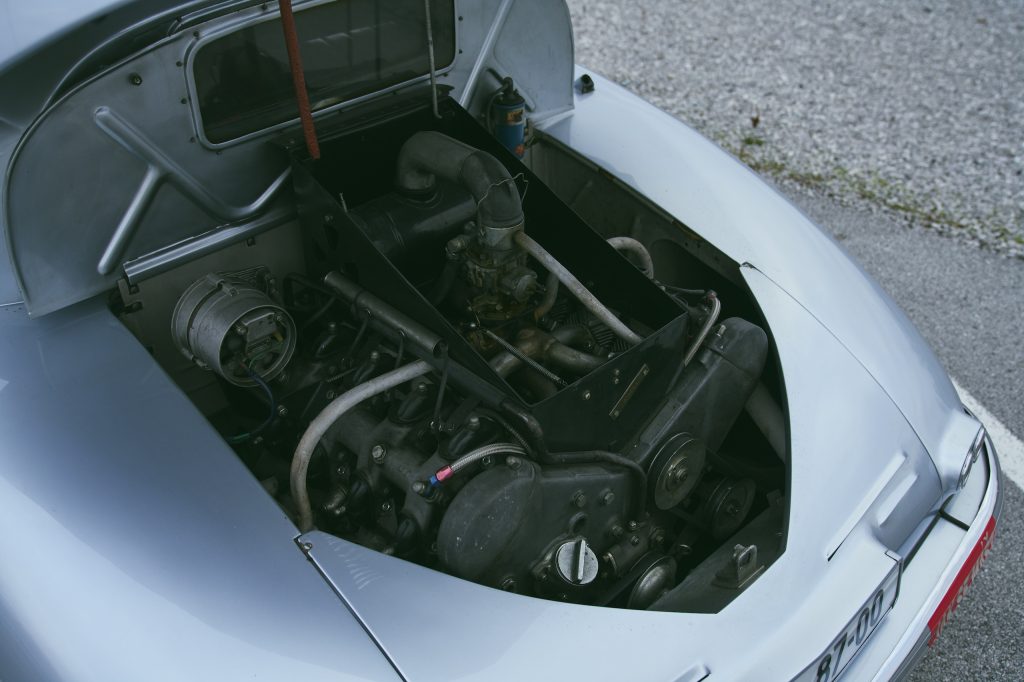

1947 Tatra T87 engine bay
Andrew Trahan

Perhaps some of this sounds familiar. When Ferdinand Porsche sat down to design a German people’s car, the good doctor tracked a familiar path. Porsche had previously worked closely with Ledwinka and later admitted to “looking over his shoulder” while designing the prototype that became the Volkswagen Beetle. He was far from the only big name in the Tatra’s orbit, however. John Steinbeck owned a T87. King Farouk of Egypt loved the thing. Adolf Hitler adored it.

Enter the A-list piece of lore. Germany annexed Czechoslovakia in 1938. If legend is to be believed, so many Nazi officers subsequently died in one-car T87 accidents that the Wermacht Command eventually banned its soldiers from driving any Tatra at all.

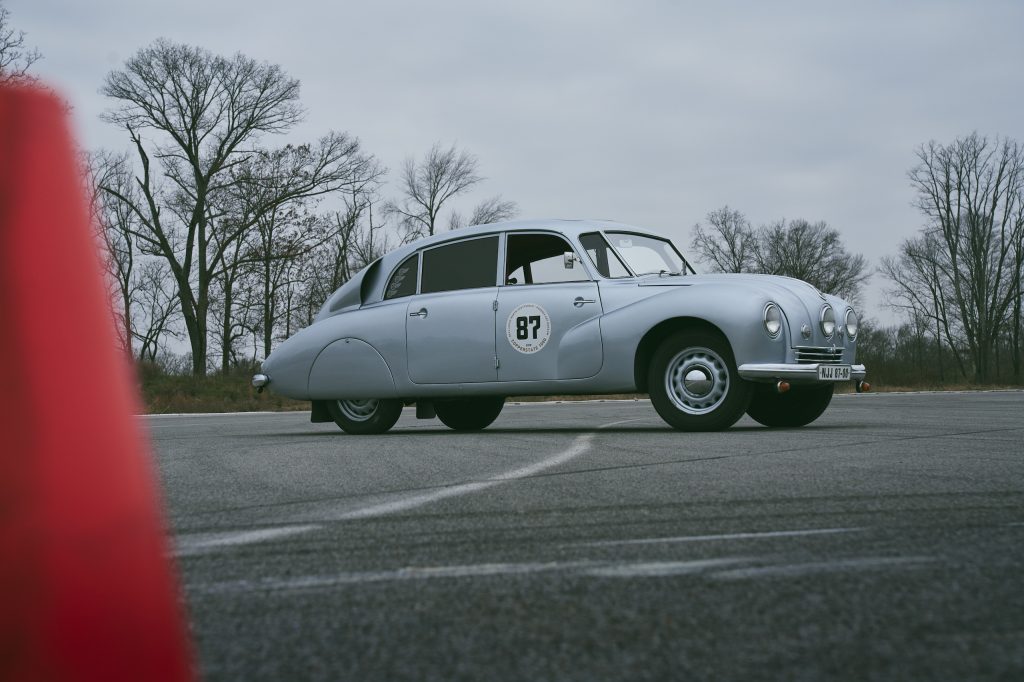

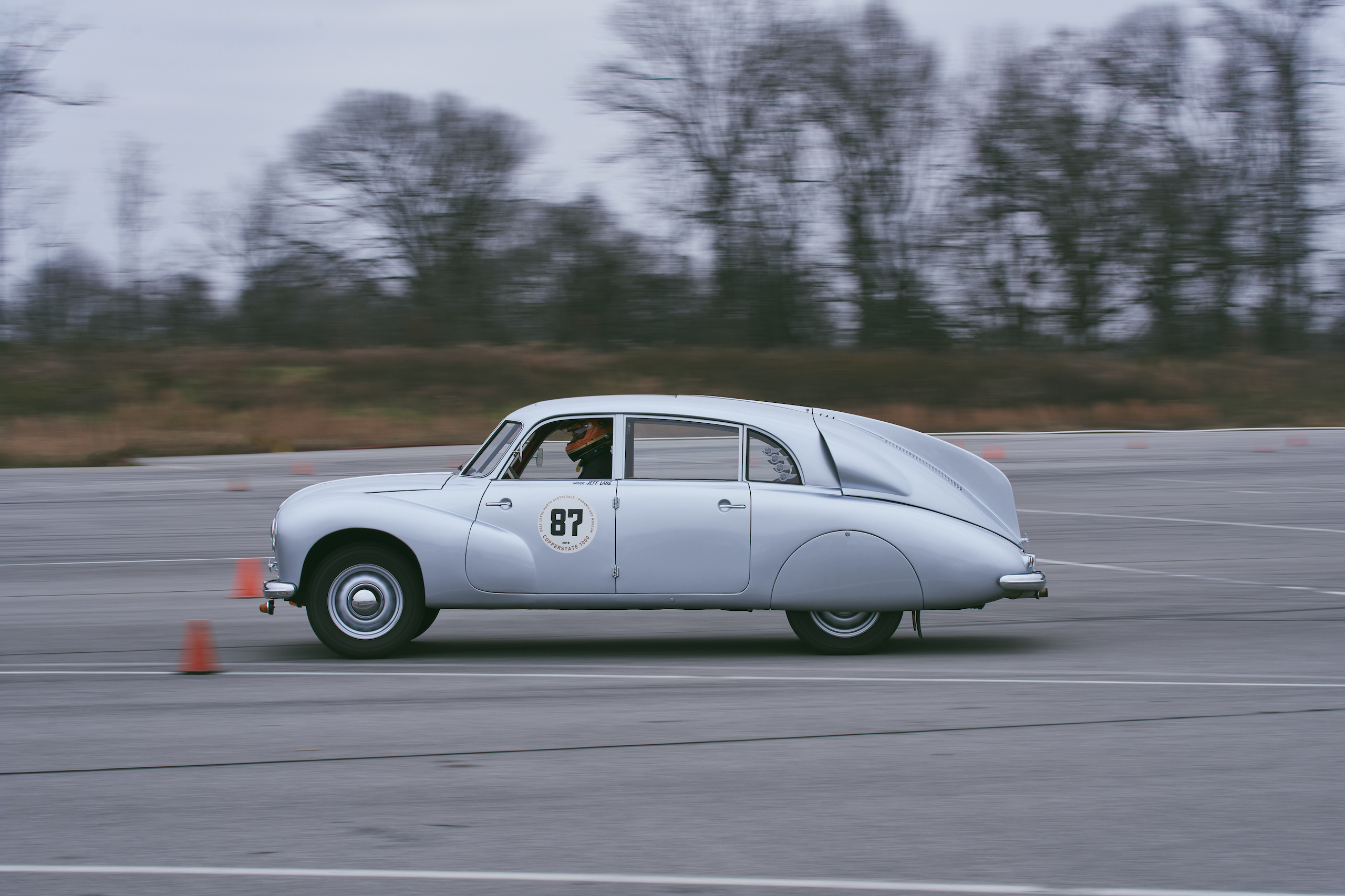

1947 Tatra T87 side profile track action
Andrew Trahan

Like all good rumors, that story took hold because the car’s reality supported it. American Ferrari impresario and Le Mans winner Luigi Chinetti once told historian Karl Ludvigsen that a T87 felt like a cross between a Greyhound bus and a P-51 with a wing full of holes. According to Ludvigsen, a British trade society imported a T87 after the war and set about trying to parse its behavior. The tests conducted found both vicious oversteer and such a “dangerous lack of stability” that the society’s test drivers flat-out refused to find the car’s top speed. The renowned British journalist Gordon Wilkins famously wrote that driving a T87 gave “the uneasy exhilaration which may be got from shampooing a lion.” Even today, some believe this is understatement.

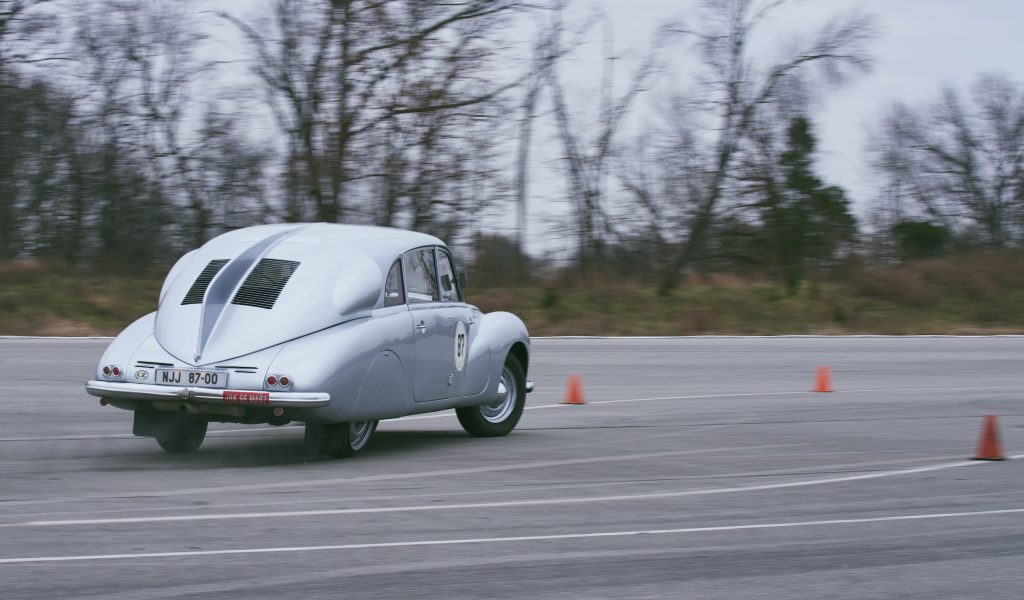

1947 Tatra T87 rear three-quarter track action
Andrew Trahan

The Lane museum is in Nashville. NCM, Hagerty’s track of choice for tests like this, lives about an hour away, in Bowling Green, Kentucky. Early one morning late last year, I hopped in the Lane’s T87 in Nashville and drove to Kentucky. Twenty minutes into the trip, gliding down the highway at a serene 70 mph, I fell into in an extended state of wonder, marveling at the comfort and quiet. After 30 miles or so, the myth seemed toothless, the Tatra lightly particular in road manners but also mostly harmless, and certainly no more dangerous than an old Porsche 911. Then, near the state border, the draft from a passing truck sent the rear bumper into a series of uncomfortable and growing wag-the-dog oscillations across the lane. I let the big sedan have its head—attempting to correct for and chase those motions would have only made them worse—and after a moment, the car simply shook itself out. But the process consumed around an eighth of a mile of highway and produced the loudest eyebrow raise my body has given since 2015, when I had a wheel come off a Ferrari 488 in track testing and nearly liquefied my socks.

Hell of a car, I found myself thinking. A careful pair of hands on the wheel would be fine. And a distracted grandfather could probably crash the thing in a straight line.

1947 Tatra T87 front three-quarter
Andrew Trahan

Because history is nothing if not cruel, Ledwinka’s genius produced not fortune but footnote. When Tatra aimed infringement lawsuits at VW, Hitler shut them down. He also axed Ledwinka’s smart little Beetle competitor, the T97. Postwar, the Soviets jailed Ledwinka on trumped-up charges of collaboration. A subsequent VW-Tatra settlement sent the Czech company millions, but the man himself saw nothing. He died in 1967, more than a little bitter.

The story makes you curious. As to the relationship between reality and legend, but also the virtue of iconoclasm, and the power of time to calcify truths. And so, several months back, when Hagerty decided to spin up a series of tests focused on the intersection of infamy and myth … well, let’s just say we knew exactly where to start.



ROLL ME OVER, LEDWINKA

1947 Tatra T87 rollover crash action front
Andrew Trahan

I sat there, blinking back shock, as they pushed the car onto its feet.

Anyone familiar with YouTube and cars knows rollovers usually make their chain reactions visual: A sliding race car digs a wheel into the dirt, say, or a rally car hits a culvert and kick-flips onto its roof. Our rolling Tatra gave none of that logic when it went, merely a feeling of inevitability. I entered the corner at maybe 20 mph. The same corner, a slow right-hander, that the Tatra had seen multiple times that same day, at the same speed and steering input. I turned the wheel at a rate and amount that had all morning produced a slow slide. Then my stomach went hollow.

1947 Tatra T87 rollover crash action front
Andrew Trahan

Pad testing resembles autocrossing but isn’t. The discipline uses a vast expanse of pavement and occasional cone courses to chase cause and effect—watching the result of a mid-corner throttle lift at increasing speed, for example, or observing how a compressed suspension reacts to abrupt brake input. You keep the variables as stable as you can, and you plan long and change things slowly, especially in cars with dark reputations.

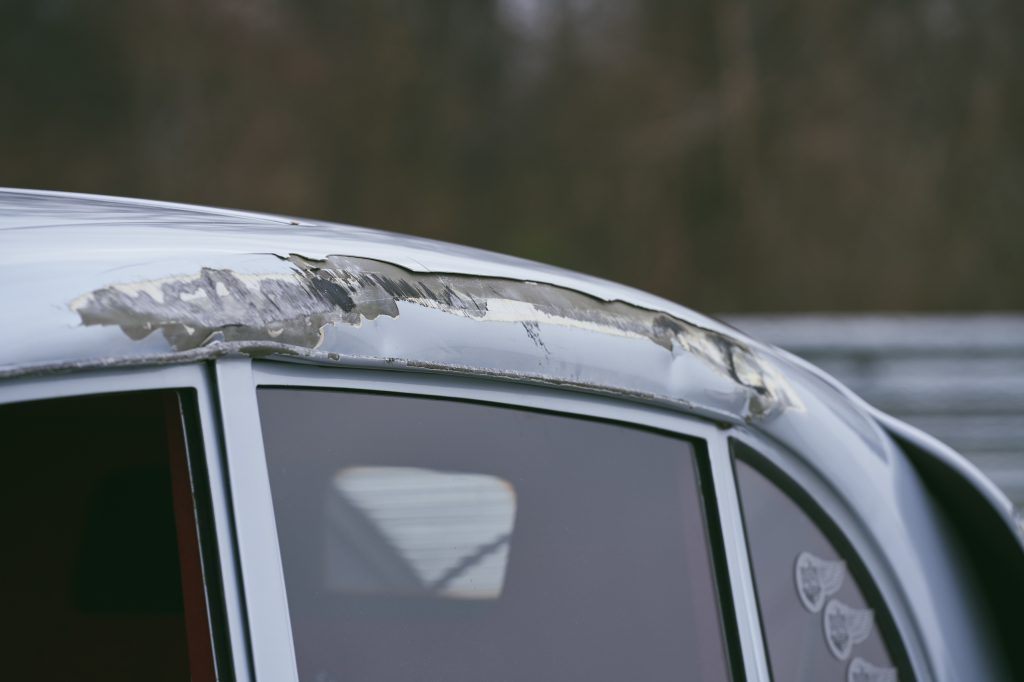

1947 Tatra T87 roofline crash damage
Andrew Trahan

The morning had gone well so far. I was interested, albeit wary, when the Tatra began to slide its rear tires in testing. The car was uniquely odd in a hundred ways but controllable, even predictable, once you learned its habits. We tried big slides and shorter ones, quick steps out and longer dramatic arcs, and the rear tires returned to grip either abruptly or gradually, depending on momentum and how much leash you were willing to give the helm. Above all, the engine’s mass and the rear suspension gave a domino effect in corners—once the Tatra’s substantial mass began moving in a given direction, the tail was following come hell or high water, even if the driver changed his mind. So long as you avoided trailed brake (the rear suspension would jack and hang) and kept your foot deep in the throttle (lifting in a corner transferred weight in a way that took acres of road to fix), the car seemed almost docile.

In short, like every vehicle, the Tatra lived by a set of rules, if unique ones, and those rules had consequences. Picture the Queen Mary on a toboggan: fun, after a fashion, but you shouldn’t buy a ticket without being well aware of the forces at work.



JUST LESS VINTAGE THAN THEY EXPECT

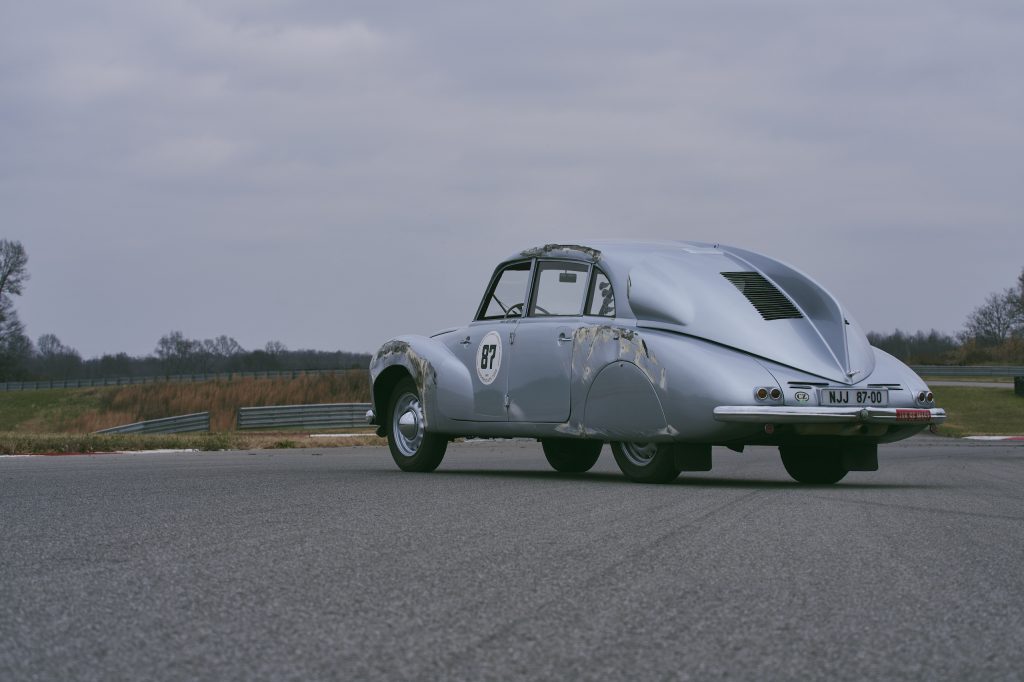

1947 Tatra T87 rear three-quarter crash damage
Andrew Trahan

Imagine a car with a small building on its bumper. Now imagine a rear suspension that can turn its tires nearly horizontal.

Shortly after this test concluded, I was talking with a racing friend from Chicago. The rollover struck him as inevitable. “Any engineer will tell you that thing will roll immediately, if you do that, given anything like a modern tire.”

1947 Tatra T87 rear three-quarter track action
Andrew Trahan

The Tatra wasn’t on modern rubber, but it wasn’t on a vintage tire, either. More an in-between. The 185-section Michelin Xs on the Lane’s T87 are a current-day reproduction of one of the first mass-produced radials, a French design more than 50 years old. The X is a widely respected standard in the classic-car world, and calibrated to produce something like midcentury grip. (Translation: Slap the same tire on a new SUV, you’ll be sliding 20 mph below the speed limit.) The T87, however, was designed before the advent of radials and originally intended for bias-ply tires. Less grip there, and different sidewall behavior to boot.

As one of our support crew at NCM remarked, “It’s not that the Michelins are modern tires. They’re just less vintage than the car was designed for.”

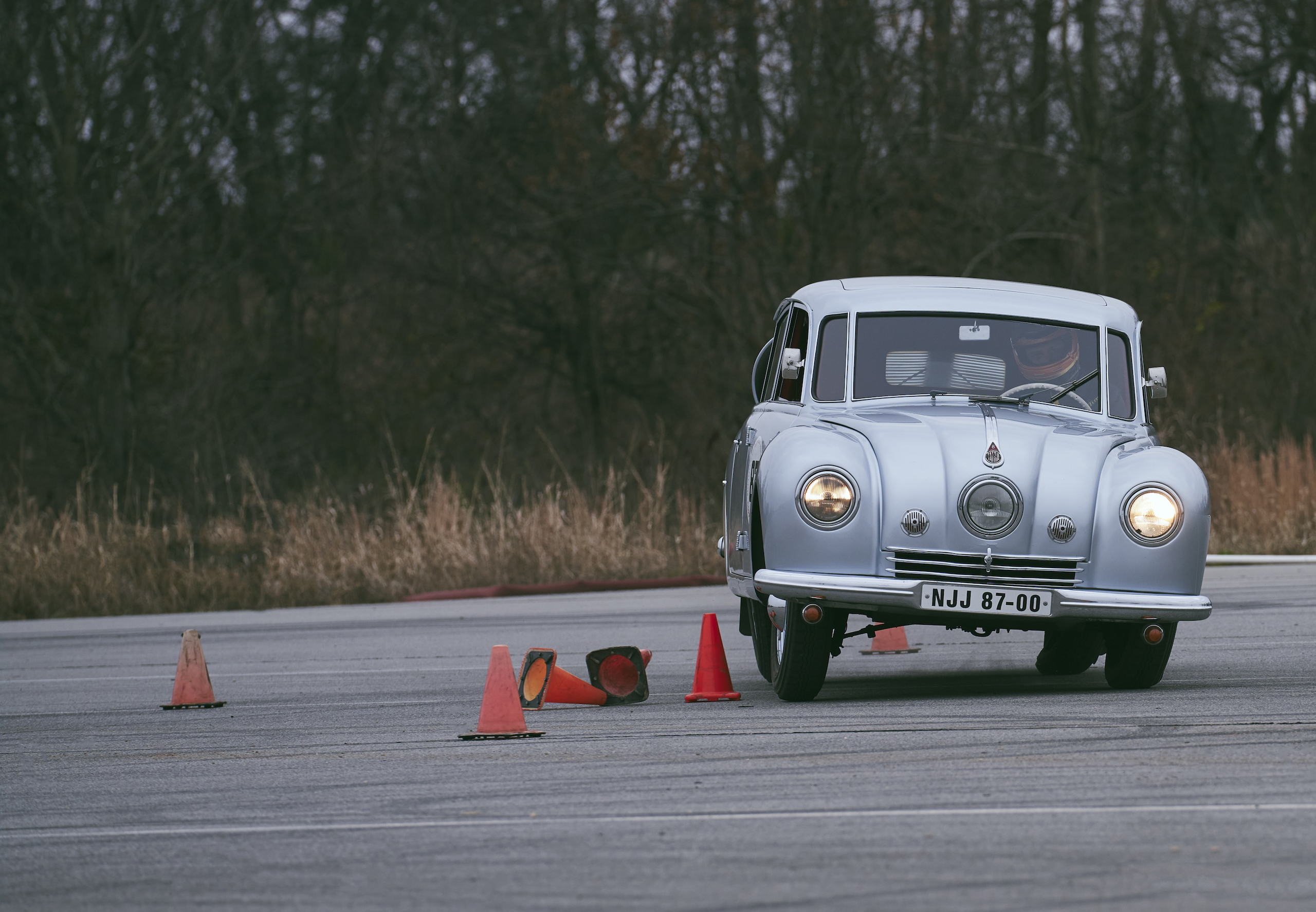

1947 Tatra T87 front track action
Andrew Trahan

Now consider those swing axles. Picture the layout in its simplest form—a simple form of independent rear suspension, basically a solid axle with a hinge in the middle, so the wheels can “swing” up or down in travel. Compress that suspension, you get substantial camber loss—the geometry of the axle causes the tire to tilt substantially inward at the top. Let the axle go into droop, however, and the tire gains camber—it leans outward as the axle progresses down, as if the wheel were trying to wedge itself under the car.

Tires like to be upright, and they like predictable treatment. Swing axles care about that stuff roughly as much as car magazines care about recreational blimping. The layout isn’t inherently dangerous, especially if a car’s construction physically limits the axles from moving too much, but the fringe behavior can be troublesome. After World War II, no less an engineering might than Mercedes-Benz aimed significant effort at solving the problem of swing-axle geometry, but even they eventually gave up and moved on. Ledwinka did what he could given his resources and priorities, but that wasn’t really much. The Tatra didn’t like gross attitude changes at any point, and it could seem recalcitrant, simply unwilling to shift mood once committed. As testing progressed, the rear axle’s behavior left us concerned about what would happen if one of the intensely stressed Michelins separated from the rim. After Lane personnel added five psi of pressure, I did a loop of the skidpad to feel things out.

1947 Tatra T87 rear three-quarter track action
Andrew Trahan

The result was a shouting testament to how a vehicle’s suspension is the sum of its parts, and how engineers choose spring and damper rates to work with a given amount of grip. The added pressure allowed the tire to hold its shape more in corners, and the resultant added traction gave enough additional body roll that the Tatra’s inside wheel would hike a little and spin under power in corners. Emergency maneuvers were less consistent and made me more uncomfortable, so we proceeded with caution. The next run, when I went to initiate a gentle, first-gear spin—essentially a slide uncaught, no steering correction—the car went over.

The simple answer is that the lower pressure let the Michelins deform enough to approximate the behavior of bias-ply rubber. Regardless, when the outside wheel went into compression, the newly compressed axle acted as fulcrum. The car’s mass simply pivoted around it, and up she went.



JEFF INSISTED THE SHOW SHOULD GO ON

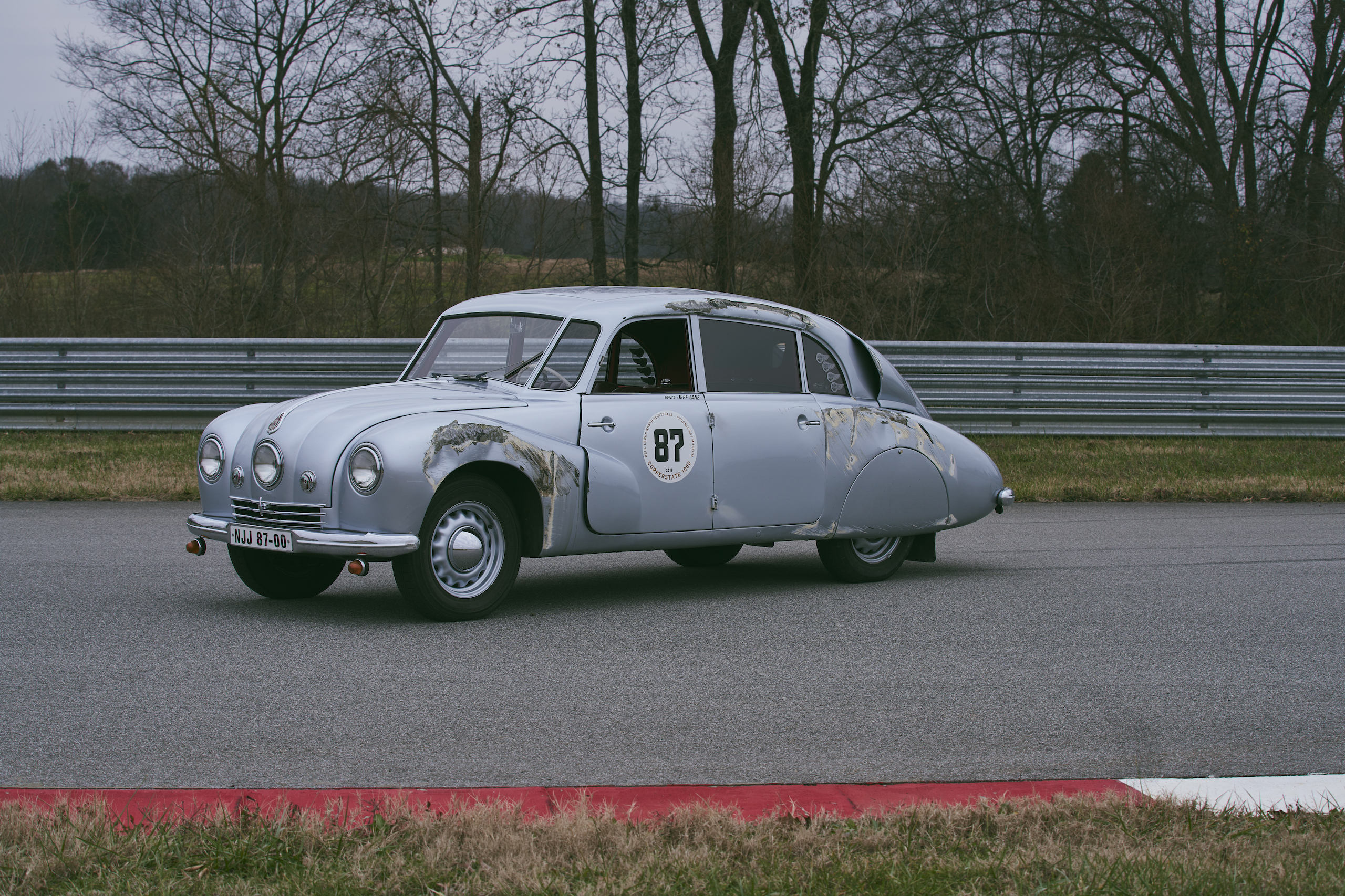

1947 Tatra T87 front three-quarter crash damage
Andrew Trahan

The folks at the Lane will tell you that some people on the museum’s staff dislike driving the T87 because it’s so different. Even given the accident, I found the thing remarkable. Highway driving is like standing on the prow of a ship, acres of substance behind you. Traffic is like being rolling around in comic-book mad zeppelin science. Valvetrain thrum and gearbox whine emanate aft. The engine sounds industrial and gruff, happiest around 3000 rpm, a relic from the time when large engines were attractive mostly because they were torquey, which was handy because most people and gearboxes hated shifting. The four-wheel drum brakes are unassisted and take all your leg to accomplish very little. Opening the windows at 75 mph gives zero buffeting. You nudge that deliciously light steering, surrounded by a nearly tangible sense of genius and wondering why the world became allergic to dreaming big. The sum experience recalls a 1960s American car turned inside-out and built decades before its time, for an Art Deco future that never happened, one where we all own flying boats and everyone has an extensive collection of steam-powered pants.

How many objects of industrial design seem to exist alone, absent equal?

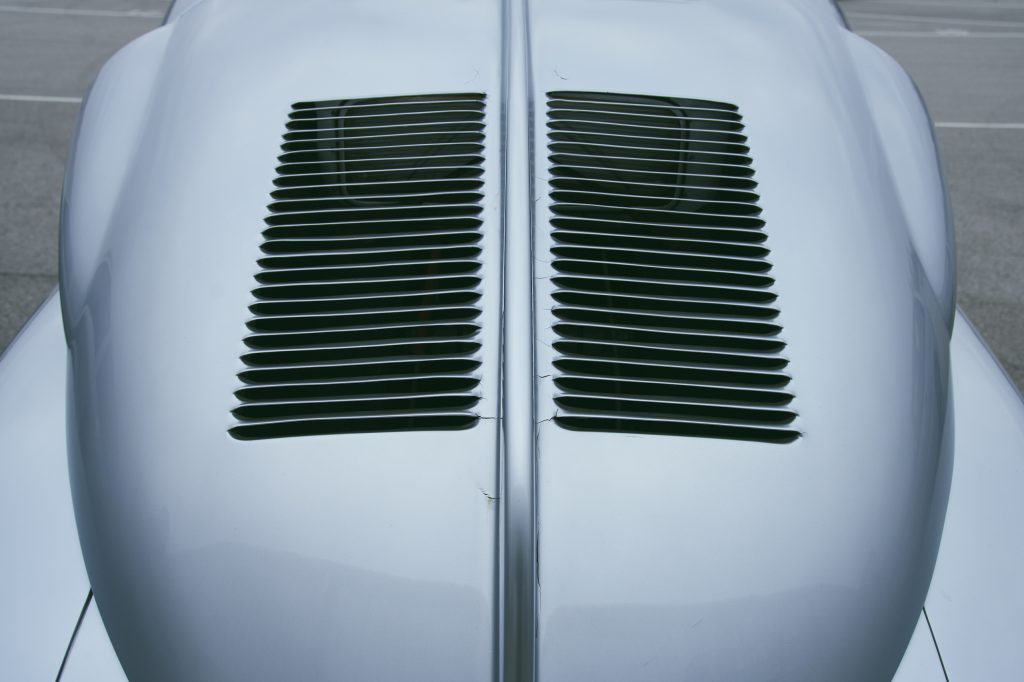

1947 Tatra T87 rear vent
Andrew Trahan

“It was a limousine,” Jeff Lane told me, after the rollover. He gave one of those what-can-you-do shrugs. “It’ll go around a corner faster than you think it should, but it wasn’t designed to be driven like this.” He’s not wrong. The unfortunate catch, of course, is that people did drive it like that, and a reputation solidified, and there you go.

The arc of the 20th-century automobile is primarily one of speed and comfort. Driving evolved from a task requiring specialized mechanical knowledge to a pastime for the masses. We take it as rote that each new car gives more notice as to its intentions and fewer penalties for poor choices. But that arc goes hand in hand with our perpetually evolving definition of risk. In the early 1960s, when my father was a boy, my grandparents let him ride, unbelted, on the package shelf of their Pontiac Star Chief. Once upon a time, brakes that faded into nonexistence in normal traffic were simply as good as it gets. We accept so many ideas as destinations right up until the moment that hindsight proves them a brief stopover.

With the car back on its feet, I climbed out and lifted off my helmet. The padding glistened with sweat. One of NCM’s medics gave me a checkup, and then I sat down next to the car. The Tatra’s damage resembled a minor sideswipe, missing paint and dents. Hagerty’s staff filed an insurance claim, and I asked Lane if he wished to abort our test. Because he is a cheery man with no small amount of spirit, he insisted we keep going.

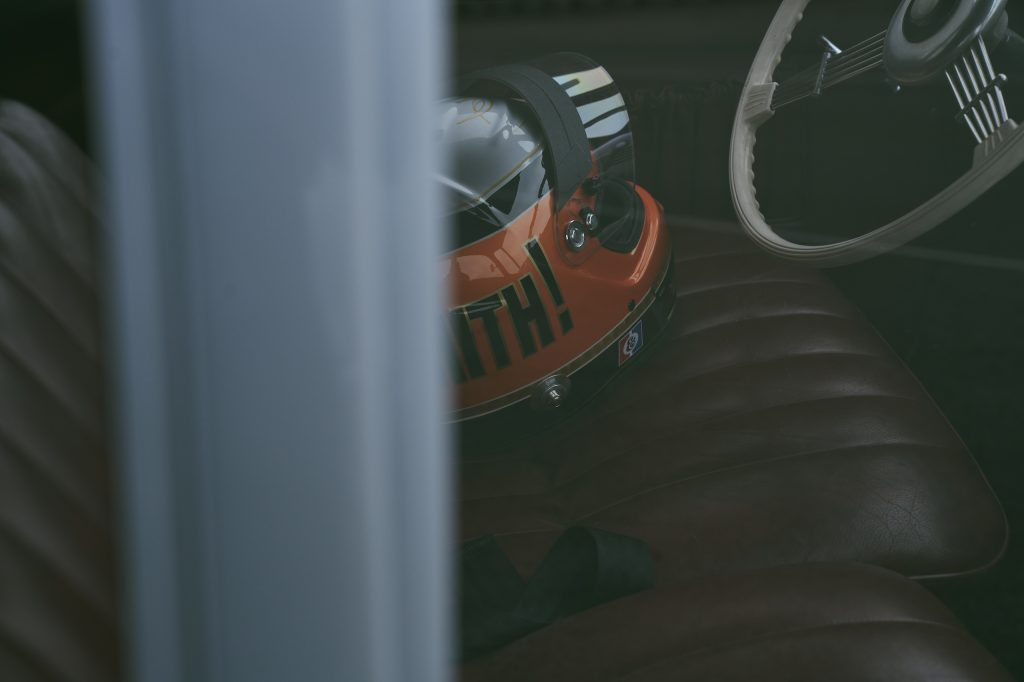

1947 Tatra T87 racing helmet inside
Andrew Trahan

Ledwinka did as well. The T87 was not his last work, but the car’s strange blend of success and failure was so potent that it began to define the man’s legacy long before he died. By any cold metric, the Tatra was a dead end, if perhaps one slightly less than deserving of its reputation. And if history tends to focus on mistakes, well, it’s only because we are only worse off if those moments keep us from learning.

In times like those, we stand back up, and we take a breath, and we try to focus on the volume of what we don’t yet know. The nature of curiosity and failure. The reason why we bother solving problems in the first place. And why it is always, above all, best to never assume that you know an answer before the question has had a chance to leave your mouth.



1947 Tatra T87

Production: 1936–1950
Engine: 3.0-liter V-8, 75 hp, 112 lb-ft (torque estimated)
Transmission: 4-speed manual
Drive: Rear
Weight: 3000 pounds

Known For: Attempting to invent the future and (possibly) killing a lot of Nazis.

The Reality: Not so much dangerous as demanding of attention, and unforgiving of coloring outside the lines.

Lesson: A formidable work of genius, in every sense of the phrase.
